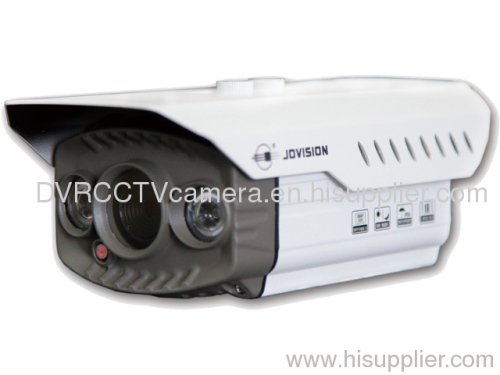

P2P H264 1/3CMOS Tri-stream Network ip camera from China manufacturer

Product Detail

Model No.: JVS-N71-HC Network IP camer...

Production Capacity: 4000

Delivery Date: 2-3 working days after paym...

Means of Transport: other,

Packing: carton box

Advantage: No need static IP,ddns,port...

Parameters
Model/ Parameters JVS-N71-HC
Imaging Sensor 1/3″COMS
Pixel Count Max 1280×720
Video Compression Standard H

Parameters

Model/ Parameters	JVS-N71-HC
Imaging Sensor	1/3″COMS
Pixel Count	Max 1280×720
Video Compression Standard	H.264/JPEG
Video Frame Rate	Max 25fps
Video Code Rate	128Kbps8Mbps
Synchronization	Internal Synchronization
SNR	44dB
Illumination	0 LUX(with IR on)
Lens
Lens Mount	CS
Lens	4,6,8,12mm optional
Visual Angle	4mm:72°\6mm:48.8°\8mm:37°\12mm:24.2°
Focusing System	Manual
Functions
Privacy Masking	Supports 4 zone Masking
Exposure Control	Auto
Gain Control	Auto
Dynamic Range	83.5dB
White Balance	Auto
Day-Night Function	Supports color to black
Video Adjusting	Supports Contrast, Brightness, Saturation, Acuity, Screen Image adjusting
Periphery Interface	Audio Input, Video Output, USB Interface, 485 Interface
Remote Operation	System Settings, Stream Control, Storage Management, Account Management, Network Administration
Motion Detection	Support
Detection Alarm	E-mail Alarm, Client-end Alarm
RS-485 Protocol	Not support
Network
Ethernet network	10/100M Ethernet,RJ45 Port
Stream	Tri-stream
Network Protocol	Standard HTTP.TCP/IP.ICMP.RTSP.RTP.UDP.RTCP.SMTP. FTP. DHCP.DNS.PPPOE, supports ONVIF protocol
Network Transmission	Imbedded with Jovision CloudSEE Transmission Protocol
Local Storage	USB storage
Work Conditions
Temperature	-20℃+55℃
Humidity	10%90%
Main Features
IR Light	2 Lattice Lights
Water-proof Grade	IP66
Power Supply	DC 12V
Power Consumption	Day : 3W ; Night :6W
Material	Aluminum alloy
Size(W×D×H)	190×100×80mm
Weight	720g
Installation	Need Bracket
